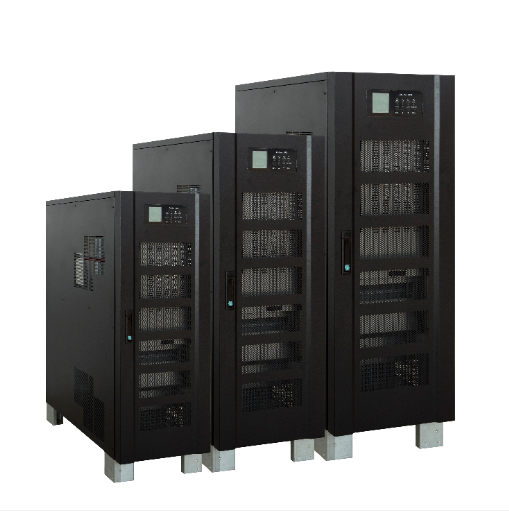

RM Series Modular Online UPS 40-500kVA (380V/400V/415V)
RM 120K
The RM series modular, online UPS ranging from 40kVA to 500kVA is designed to protect any critical load for medium and large data center achieving maximum availability. The RM series feature the latest technology of 3-level technology and PFC input control, which guarantees high efficiency of 96% and ultra-reliability. Its compact design ensures power density of 500kVA in one cabinet, 3 units can be paralleled for capacity or redundancy up to 1500kVA, making it an excellent choice for medium and large facilities.
Compact design
500kVA in one cabinet, footprint less than 1.45m²，saving valuable room space
High power density
50kVA power module in 4U height, easy for capacity expansion
High efficiency
Advanced 3-level technology guarantees high efficiency operating in double conversion mode up to 96%
Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
High scalability
The system can be configured from 40kVA to 500kVA in one single cabinet,3 units in parallel for a capacity up to 1500kVA
Friendly HMI
10.4” touch color LCD with graphic display, independent LCD for each power module
Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
Multi communication interface
Provide RS232, RS485, USB, SNMP, AS400 and programmable dry contacts
500kVA in one cabinet, footprint less than 1.45m²，saving valuable room space
High power density
50kVA power module in 4U height, easy for capacity expansion
High efficiency
Advanced 3-level technology guarantees high efficiency operating in double conversion mode up to 96%
Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
High scalability
The system can be configured from 40kVA to 500kVA in one single cabinet,3 units in parallel for a capacity up to 1500kVA
Friendly HMI
10.4” touch color LCD with graphic display, independent LCD for each power module
Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
Multi communication interface
Provide RS232, RS485, USB, SNMP, AS400 and programmable dry contacts
