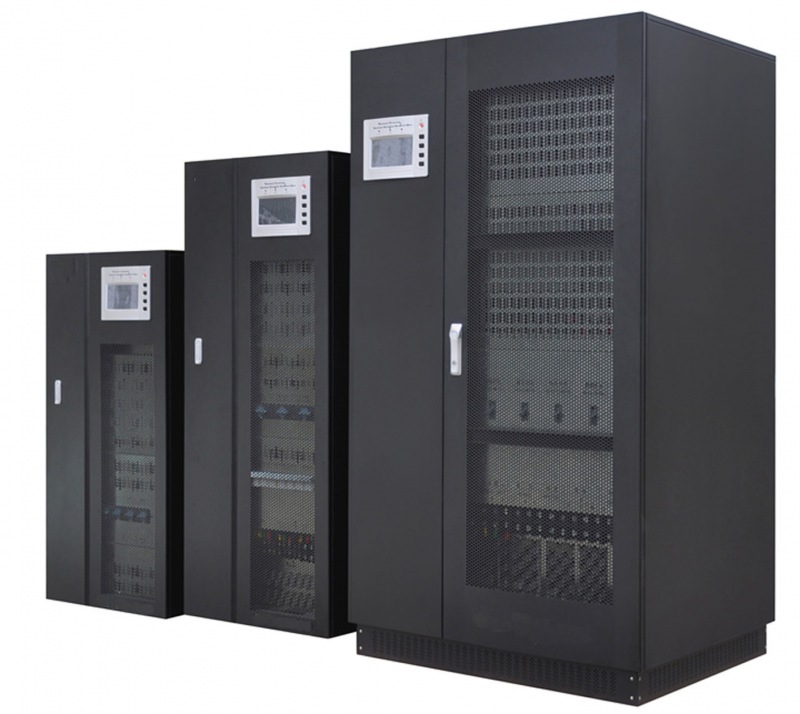

ABCWJK series 3-3 low frequency on-line intelligent digital UPS congregates the essence of ABCW technology and entirely breaks the bottleneck technology in traditional simulation circuit era. It adopts the digital control technology, of which the core is high-speed MCU and CPLD. It takes the 6th generation low-exhaust and big-power IGBT and static switch as power devices. Guided by these most advanced technologies in the world, it is really the first-class product.
ABCJK series 3/3 low frequency online UPS also adopts 4 layer PCB. The capacity can be from 10KVA~400KVA, be widely applied to the telecommunication, bank, stock exchange centre, transportation, electricity, industry etc.
Key features:
►Pure sine wave output, true on-line dual conversion design
►Adopt 4 layer PCB, and SMD technology
►High efficiency IGBT (insulated gate bipolar transistor) inverter technology
The 6th generation low-exhaust and big-power IGBT with excellent high speed switch feature, high voltage feature and large current feature. Drives by electric voltage, only need small control power. The 6th generation with lower saturation voltage, the inverter has high efficiency, low temperature, high reliability.
►Touch screen display, with the simple operation and Intuitive data, optional display language and logo
►Set the work mode on the display directly, UPS mode, ECO mode, EPS mode
►Intelligent detecting function
This system microprocessor can continually online detect power status, the breaker status and all the working status of the circuit.
►Excellent load feature
It is completely capable to load from 0-100% while no need to change to bypass, which make sure the output reliable.
►Three phase separately control, realizes the control of instantaneous over-loading balance, so as to reach 100% unbalanced load
►Cold start
When mains failure, can directly use the battery to start the ups until the battery discharge to low voltage, when mains recover, can self start UPS.
►Generator compatible
According to the real electric circumstances, UPS can be compatible to the generator, highly improve the generator input efficiency, save the energy.
►Intelligent communication
With RS232 and RS485 standard collocation, optional SNMP and dry contact
►Perfect protection
Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
►Selectable battery inspection module
Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.
►High-powered dynamic feature
Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment, but also reduce the output voltage distortion.
►Optional input harmonic filter or 12 pulse rectifier
Effectively restrain the input THD, raise UPS input power factor, reduces the input THD current.
Technical specifications:
|
Model
|
10K3/3
|
20K3/3
|
30K3/3
|
40K3/3
|
60K3/3
|
80K3/3
|
100K3/3
|
120K3/3
|
160K3/3
|
200K3/3
|
300K3/3
|
400K3/3
|
|
|
Nominal capacity(KVA)
|
10KVA
|
20KVA
|
30KVA
|
40KVA
|
60KVA
|
80KVA
|
100KVA
|
120KVA
|
160KVA
|
200KVA
|
300KVA
|
400KVA
|
|
|
Work principle
|
Pure sine wave online
|
||||||||||||
|
Phase
|
3 phase +N+G
|
||||||||||||
|
Input power factor
|
>0.8, >0.95
|
||||||||||||
|
Rectifier
|
Nominal input voltage
|
220/380VAC, 230/400VAC, 240/415VAC
|
|||||||||||
|
Range
|
±25%
|
||||||||||||
|
Nominal input frequency
|
50Hz±10%, 60Hz±10%
|
||||||||||||
|
Output ripple
|
<2%
|
||||||||||||
|
Soft start
|
0~100% 5s
|
||||||||||||
|
Charge
|
Charge mode
|
Constant current to constant voltage, with temp compensation; with auto change
|
|||||||||||
|
Float voltage
|
432VDC
|
||||||||||||
|
Boost voltage
|
464VDC
|
||||||||||||
|
Temperature compensation voltage
|
3mV/'C(monomer)
|
||||||||||||
|
Charge current
|
0.1C(automatically change according to battery capacity)
|
||||||||||||
|
Charge power
|
20% of rated capacity
|
||||||||||||
|
Battery
|
Battery type
|
Maintenance-free lead acid battery
|
|||||||||||
|
Battery capacity
|
7~999AH settable(according to the capacity)
|
||||||||||||
|
Battery number
|
32pcs 12V, or 192pcs 2V(nominal voltage 384VDC)
|
||||||||||||
|
Inverter
|
Phase
|
3 phase +N+G
|
|||||||||||
|
Rated power
|
Rated capacity×0.8
|
||||||||||||
|
Nominal voltage
|
220/380VAC, 230/400VAC, 240/415VAC
|
||||||||||||
|
Output voltage stability
|
±1%(stable load); ±3%(fluctuant load)
|
||||||||||||
|
Output frequency stability
|
50Hz/60Hz<±0. 5%
|
||||||||||||
|
Crest factor
|
> 3:1
|
||||||||||||
|
Output waveform distortion
|
Pure sine wave, linear load<3%;non-linear load<5%
|
||||||||||||
|
Dynamic characteristics
|
Instant voltage<±5%(from 0 to100%), instant recover time<10ms
|
||||||||||||
|
Unbalanced load voltage
|
<±5%
|
||||||||||||
|
Overload protection
|
125% 1 minute; 150% 1s; 200% 200ms
|
||||||||||||
|
Efficiency
|
>95%(full load)
|
||||||||||||
|
Bypass
|
Phase
|
3 phase +N+G
|
|||||||||||
|
Nominal voltage
|
220/380VAC, 230/400VAC, 240/415VAC
|
||||||||||||
|
Transfer time
|
<1ms(static switch with 0 transfer time)
|
||||||||||||
|
Protection
|
Input protection
|
Input voltage/frequency over limited; wrong phase; lack phase protection
|
|||||||||||
|
Output protection
|
Over current; short circuit; factor low protection
|
||||||||||||
|
Battery protection
|
Over charge; over-discharge protection
|
||||||||||||
|
Temperature protection
|
Environment over temperature protection; inverter over temperature protection
|
||||||||||||
|
Hardware failure protection
|
Assistant power abnormal, breaker cut off, breaker overload, power devices over current/over voltage etc. protection
|
||||||||||||
|
System parameters
|
Working environment
|
Temp: 0~40'C, relative humidity 0~95%
(1% decrease against 100 meters’ rise, altitude 4000 meters Max)
|
|||||||||||
|
Cooling down method
|
Compulsive ventilation(with temperature control)
|
||||||||||||
|
Communication interface
|
RS232, RS485; optional SNMP card(for internet long distance monitor)
|
||||||||||||
|
Redundancy function
|
Tandem hot backup or parallel connection
|
||||||||||||
|
Anti-surge capacity
|
10/700μS, 5KV; 8/20μS, 20KA
|
||||||||||||
|
Protection level
|
IP21
|
||||||||||||
|
Safety performance
|
Vin-n Vout-n 3000VAC, creepage<3.5mA, insulating resistance>2MΩ(500VDC)
|
||||||||||||
|
Noise(dB)
|
40~50
|
45-55
|
55~60
|
60~65
|
65~70
|
||||||||
|
Dimension(W×D×H)mm
|
430×750×1080
|
480×895×1200
|
980×800×1800
|
1380×950×1800
|
1600×1150×1800
|
||||||||
|
Weight(Kg)
|
200
|
350
|
400
|
480
|
580
|
850
|
920
|
1200
|
1300
|
1520
|
1830
|
1980
|
|
All specification subject to change without notice
Customer-made specifications are acceptable
