Solar Inverter

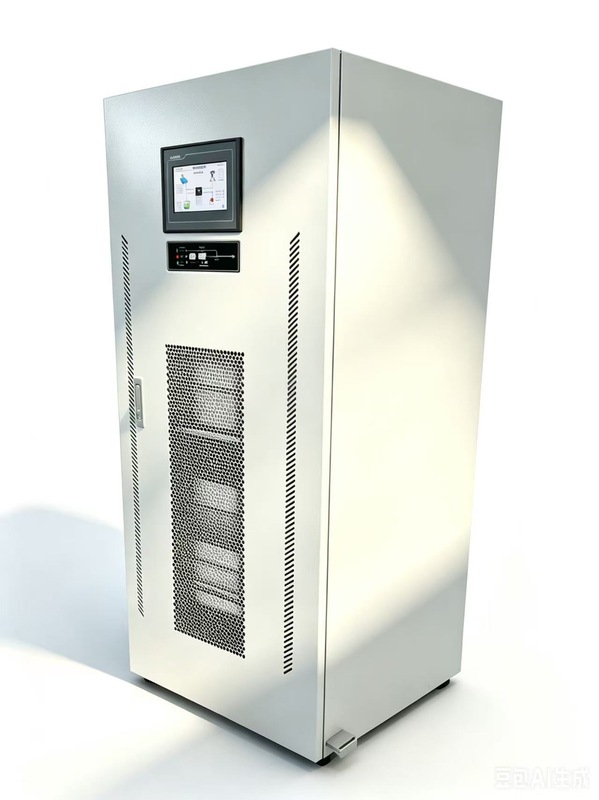

40kw Solar Inverter with MPPT
SL33-40KW
1, Product introduction
SL33 series 3ph solar inverter is transformer based and is a highly intelligent unit, which integrates with digitization, informatization and networking. It has a powerful information acquisition system, signal
processing system, detection system and perfect protection system. Touch LCD screen adopts the popular intuitive graphical operation interface. Compared with a regular display module, the touch screen has no
complex operation steps. The user can directly click the analog button on the screen to obtain the corresponding information, and the operation is simple and easy to understand.
2, Product features
The inverter uses digital vector control technology of DSP, MCU and DDC real-time processing to monitor the system.
2.2 High frequency pulse width modulation (PWM) technology reduces the system noise and power loss and at the same time, it ensures that customers can obtain high-quality voltage output and maximum
benefits under various working load conditions.
2.3 The AC output of the inverter is equipped with an isolation transformer, which can effectively protect the switching power supply of the computer, network and communication equipment from being damaged by DC current. At the same time, it can also show excellent dynamic performance for nonlinear load,
improve the load capacity of the machine, and have good load compatibility.
2.4 Perfect protection functions to ensure the stability and reliability of system operation: AC input over- voltage, undervoltage protection, output over-voltage, undervoltage protection, output overload and short circuit protection, battery undervoltage pre-warning protection and internal over-temperature protection.
2.5 High power IGBT enables the inverter to have strong overload capacity and impact resistance, and enhances the adaptability to the power grid.
2, Product features
The inverter uses digital vector control technology of DSP, MCU and DDC real-time processing to monitor the system.
2.2 High frequency pulse width modulation (PWM) technology reduces the system noise and power loss and at the same time, it ensures that customers can obtain high-quality voltage output and maximum
benefits under various working load conditions.
2.3 The AC output of the inverter is equipped with an isolation transformer, which can effectively protect the switching power supply of the computer, network and communication equipment from being damaged by DC current. At the same time, it can also show excellent dynamic performance for nonlinear load,
improve the load capacity of the machine, and have good load compatibility.
2.4 Perfect protection functions to ensure the stability and reliability of system operation: AC input over- voltage, undervoltage protection, output over-voltage, undervoltage protection, output overload and short circuit protection, battery undervoltage pre-warning protection and internal over-temperature protection.
2.5 High power IGBT enables the inverter to have strong overload capacity and impact resistance, and enhances the adaptability to the power grid.
