AC Inverter
High Frequency Off Grid Solar Inverter

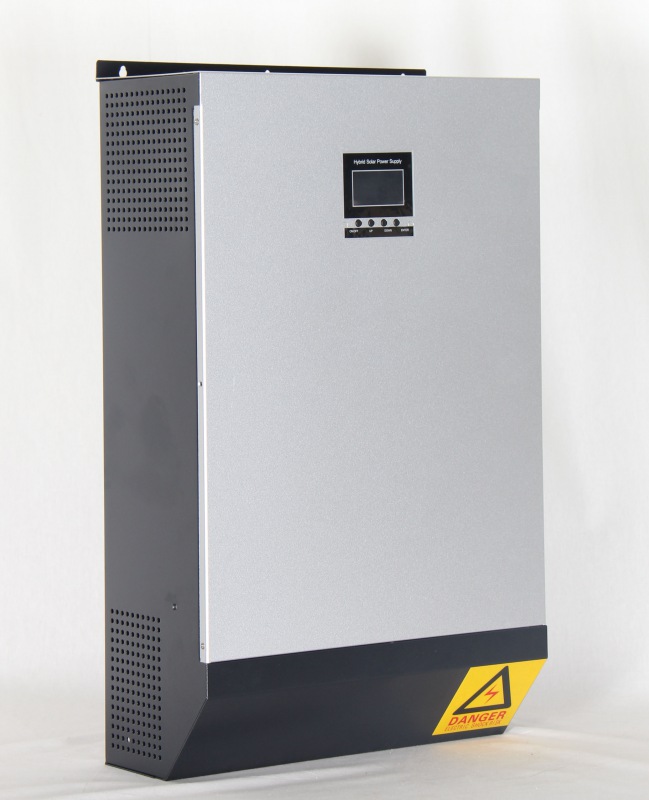

MK2 Series(3/5KW)
MK2 is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPP voltage is 150~450V, which Can help customers make full use of solar energy.
Features:

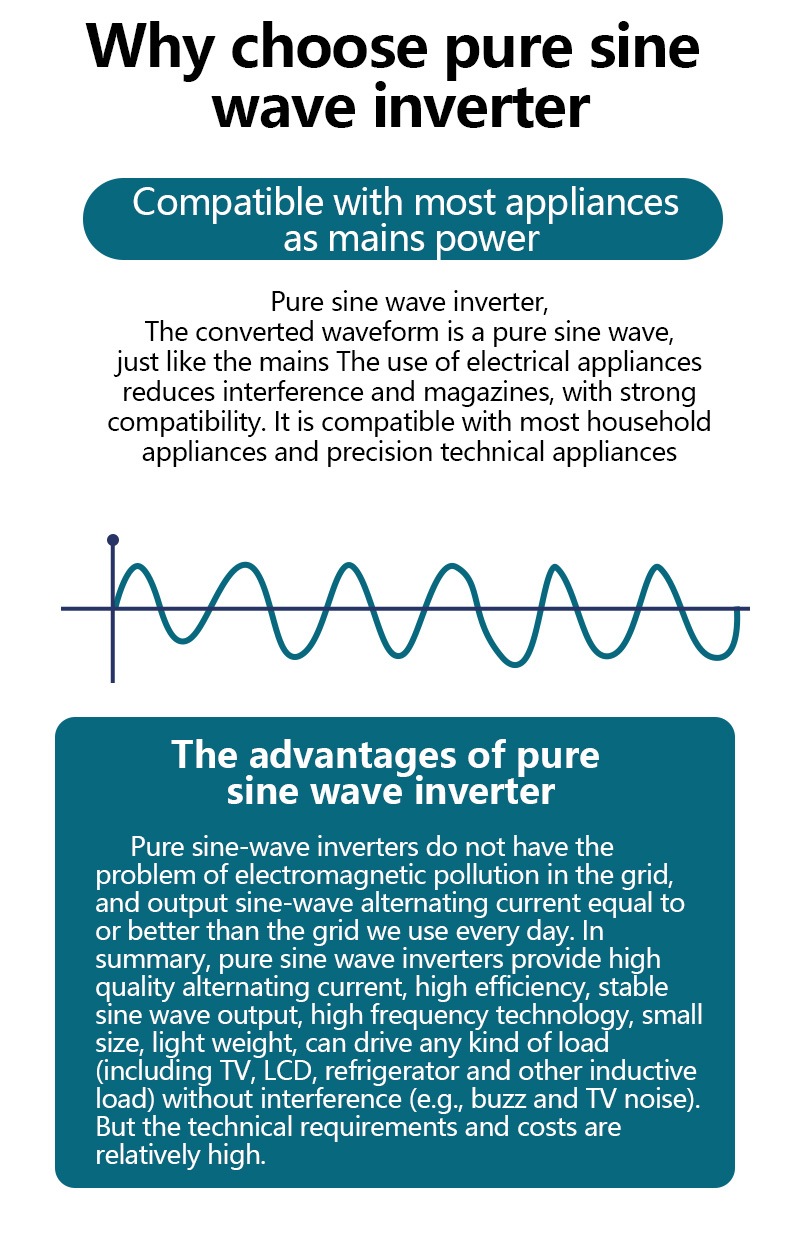

- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT 80A solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function with free CD
- WIFI remote monitoring (optional)
- Compatible to generator
- Can Run Without Battery
| MODEL | MK2-24V3KW | MK2-48V5KW |
| Nominal Battery System Voltage | 24VDC | 48VDC |
| INVERTER OUTPUT | ||
| Rated Power | 3000VA / 3000W | 5200VA /5200W |
| Surge Power | 6KVA | 10.4KVA |
| Waveform | Pure sine wave | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |
| Inverter Efficiency(Peak) | 90%~93% | |
| Transfer Time | 10ms (For personal computers) 20ms (For home appliance) | |
| AC INPUT | ||
| Voltage | 230VAC±5% | |
| Selectable Voltage Range | 170~280VAC(For personal computer) 90~280VAC(For home appliances) 184~253VAC(VED4105) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| BATTERY | ||
| Normal voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27.4VDC | 54.8VDC |
| Overcharge Protection | 30VDC | 60VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum PV current | 18A | |
| PV Array MPPT Voltage Range | 150~450 VDC | |
| Maximum Solar Charge Current | 80Amp | |
| Maximum AC Charge Current | 60Amp | |
| Maximum Charge Current | 80Amp | |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 295*528*121 |
| Package Dimensions (W*H*D)(mm) | 540*395*241 | 628*425*251 |
| Net Weight(kg) | 10 | 10 |
| Gross Weight(kg) | 12 | 12 |
| OTHER | ||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | |
| Operating Temperature | -10℃ ~50℃ | |
| Storage Temperature | -15℃ ~60℃ | |
