Solar Panel

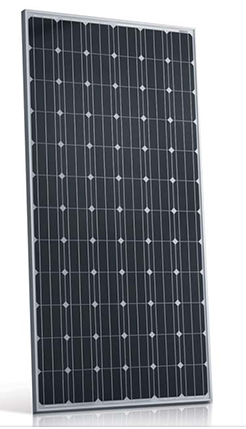

Solar panel MONO type
Applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Resident systems.
4. Any commercial or industrial ground mounting systems 5. solar television, Solar power, solar heater, solar lights, Highway solar street lamp, solar car / electric vehicles, satellites, spacecraft, space solar power plant, energy saving lamp, the field of environmental protection.
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Resident systems.
4. Any commercial or industrial ground mounting systems 5. solar television, Solar power, solar heater, solar lights, Highway solar street lamp, solar car / electric vehicles, satellites, spacecraft, space solar power plant, energy saving lamp, the field of environmental protection.
Materials of solar panels :
1. Solar cell------ Germany manufactured Bosch solar cells, efficiency is about 18%
2. Front glass------ high transmission, low iron, tempered glass.
3. EVA------excellent anti-aging EVA
4. TPT-------TPT hot seal made of flame resistance, imported.
5. Frame------ Unique aluminium frame design with high mechanical strength for installation. .
6. Junction box------ Ip65 rated, high quality, with diode protection.
1. Solar cell------ Germany manufactured Bosch solar cells, efficiency is about 18%
2. Front glass------ high transmission, low iron, tempered glass.
3. EVA------excellent anti-aging EVA
4. TPT-------TPT hot seal made of flame resistance, imported.
5. Frame------ Unique aluminium frame design with high mechanical strength for installation. .
6. Junction box------ Ip65 rated, high quality, with diode protection.
| 290M-72 | 295P-72 | 300M-72 | 305M-72 | 310M-72 | 315M-72 | 320M-72 | ||
| Maximum Power | 290W | 295W | 300W | 305W | 310W | 315W | 320W | |
| Module Efficiency | 14.96% | 15.22% | 15.48% | 15.73% | 15.99% | 16.25% | 16.51% | |
| Maxi Power Current | 7.89A | 7.99A | 8.09A | 8.21A | 8.33A | 8.44A | 8.5A | |
| Maxi Power Voltage | 36.76A | 36.93A | 37.09A | 37.15A | 37.22A | 37.33A | 37.43A | |
| Short Circuit Current | 8.52A | 8.56A | 8.60A | 8.65A | 8.71A | 8.78A | 8.81A | |
| Open Circuit Voltage | 45.76A | 45.78A | 45.85A | 45.96A | 46.02A | 46.31A | 46.56A | |
| Power Tolerance | 0~+5W | |||||||
| Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/m²,Cell Temperature 25℃) | ||||||||
| Mechanical Characteristics | ||||||||
| Cell Type | Monocrystalline 156x156mm,72(6x12)pcs in series | |||||||
| Glass | High Transmission,Low Iron,Tempered Glass | |||||||
| Frame | Anodized Aluminium Alloy | |||||||
| Junction box | IP65/IP67 rated,with bypass diodes | |||||||
| Dimension | 1956*992*40/45/50mm | |||||||
| Output Cable | 4mm2(EU)/12AWG(US),1000mm² | |||||||
| Weight | 27Kg | |||||||
| Installation Hole Location | See Drawing Above | |||||||
| No.of Bypass Diodes | 6 | |||||||
