Solar Air Condition
100% DC Solar Air Conditioning
The System is perfect for residential,commerical , telecom , portable rooms or offices,or remote facilities where conventional or generator power is costly or unreliable.As leading technology of 100% solar air conditioner, the main features of our products are as followed:
Solar powered air conditioner requires no AC Power.
All DC-No Inverter 100% DC Operation
Variable Speed BLDC(Brushless DC)
Overnight operation available
Quite operation
Works with exernal standard solar charge controller
Batteries are configured in series/parallel for 48V dc Operation
Solar panel and battery requirements will vary based on application and local sunlight conditions.
Good for unstable power supply
Lower Start current
Our 100% Solar DC Air Conditioning have below features:
1.DC and Inverter:
DC: It can keep our solar powered air conditioner running in high efficiency condition, Keep room temperature steady, let people feel comfortable.
Inverter: If our solar powered air conditioner working in high temperature (53°C) room, it is still working, not closed by its self.
2.Well-known used Compressor, Toshiba.
3.Well-known generator, usually use Panasonic.
4.Using electric expansion valve, keep every system in the best energy-saving state.
5.Lower Start current, the starting current is in very lower current (1-2A).
6.When our solar powered air conditioner working, it is in small noise.

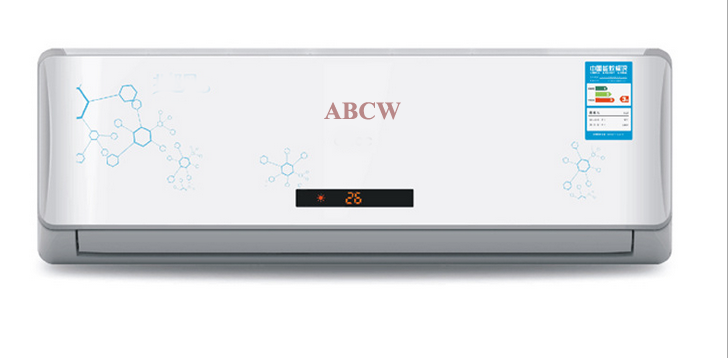

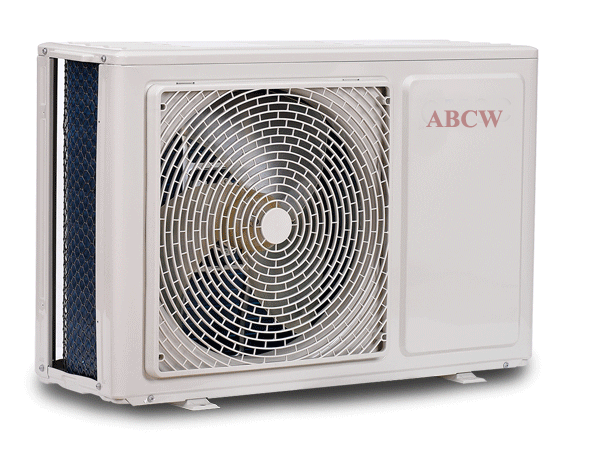

100% full dc Solar Air Conditioning Photos Show:
The System is perfect for residential,commerical , telecom , portable rooms or offices,or remote facilities where conventional or generator power is costly or unreliable.As leading technology of 100% solar air conditioner, the main features of our products are as followed:
Solar powered air conditioner requires no AC Power.
All DC-No Inverter 100% DC Operation
Variable Speed BLDC(Brushless DC)
Overnight operation available
Quite operation
Works with exernal standard solar charge controller
Batteries are configured in series/parallel for 48V dc Operation
Solar panel and battery requirements will vary based on application and local sunlight conditions.
Specifications
100% Solar Air ConditionerGood for unstable power supply
Lower Start current
Our 100% Solar DC Air Conditioning have below features:
1.DC and Inverter:
DC: It can keep our solar powered air conditioner running in high efficiency condition, Keep room temperature steady, let people feel comfortable.
Inverter: If our solar powered air conditioner working in high temperature (53°C) room, it is still working, not closed by its self.
2.Well-known used Compressor, Toshiba.
3.Well-known generator, usually use Panasonic.
4.Using electric expansion valve, keep every system in the best energy-saving state.
5.Lower Start current, the starting current is in very lower current (1-2A).
6.When our solar powered air conditioner working, it is in small noise.

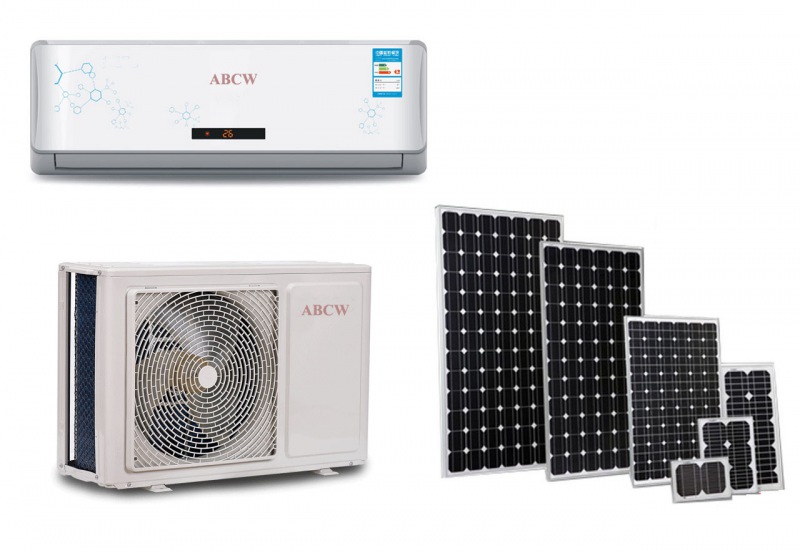

100% full dc Solar Air Conditioning Photos Show:
| Model | ABC-DC09 | ABC-DC12 | ABC-DC18 | ABC-DC24 | |||
| Power | DC260v to 400vdc | ||||||
| Cooling Capacity | 2600W/9000BTU/H | 3500W/12000BTU/H | 5000W/18000BTU/H | 7000W/24000BTU/H | |||
| Heating Capacity（W） | 2800W/9500BTU/H | 3700W/13000BTU/H | 5000W/18000BTU/H | 7000W/24000BTU/H | |||
| Air Circulation (m3/h) | 500 | 580 | 900 | 1100 | |||
| Rated Input Power (W) | Cooling | 463 | 627 | 896 | 1268 | ||
| Heating | 491 | 653 | 892 | 1261 | |||
| Rated Input Current (A) | Cooling | 9.65 | 13.06 | 18.67 | 26.42 | ||
| Heating | 10.23 | 13.60 | 18.58 | 26.27 | |||
| EER/COP | 5.62/5.7 | 5.58/5.66 | 5.58/5.6 | 5.52/5.55 | |||
| Liquid Quantity(R410A)Kg | 0.95 | 1.05 | 1.55 | 2.3 | |||
| Indoor unit | Noise dB(A) | 41 | 43 | 45 | 48 | ||
| Net Weight/Gross Weight(kg) | 11.2/14.8 | 11.2/14.8 | 16.5/19 | 16.5/19 | |||
| Outdoor unit | Noise dB(A) | 52 | 54 | 56 | 60 | ||
| Net Weight/Gross Weight(kg) | 35/40 | 35/40 | 61/66 | 65/70 | |||
| Indoor unit | Net Dimension(mm) | 795*285*215 | 795*285*215 | 1090＊330＊255 | 1090＊330＊255 | ||
| Shipping Dimension(mm） | 905*370*283 | 905*370*283 | 1145*375*315 | 1145*375*315 | |||
| Outdoor unit | Net Dimension (mm) | 760*255*525 | 760*255*525 | 865*310*710 | 865*310*710 | ||
| Shipping Dimension (mm） | 890*360*590 | 890*360*590 | 1025*395*790 | 1025*395*790 | |||
| Connecting Pipe Specifications（mm） | Liquid Pipe | φ6.35 | φ9.52 | ||||
| Gas Pipe | φ12.7 | φ16 | |||||
| connecting line specifications | 5*1.5mm²*3.6m | 4*1.5mm²*4.15m | |||||
| Power line specifications | 3*4mm² | 3*6mm² | |||||
| Compressor Brand | Toshiba | ||||||
