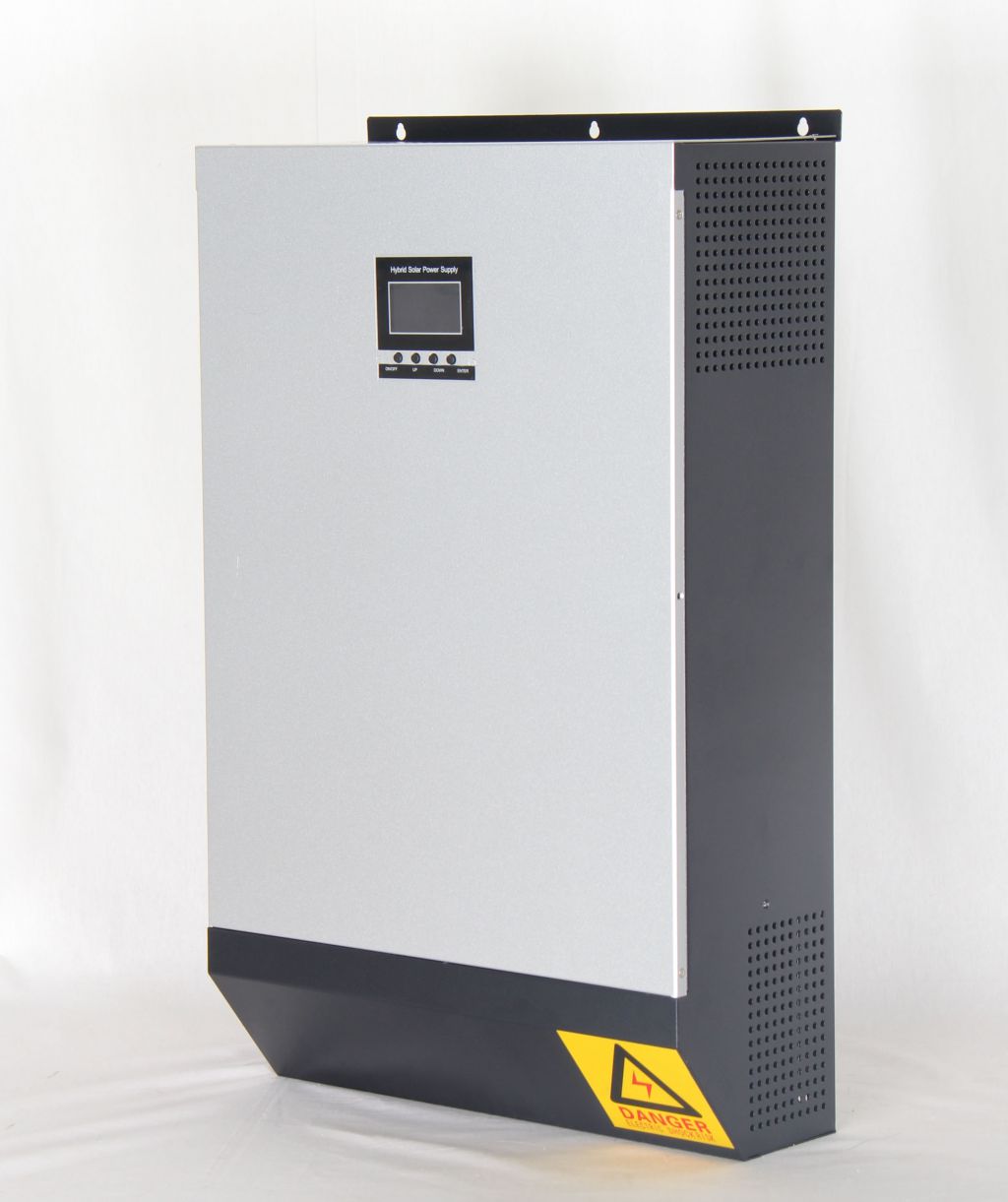

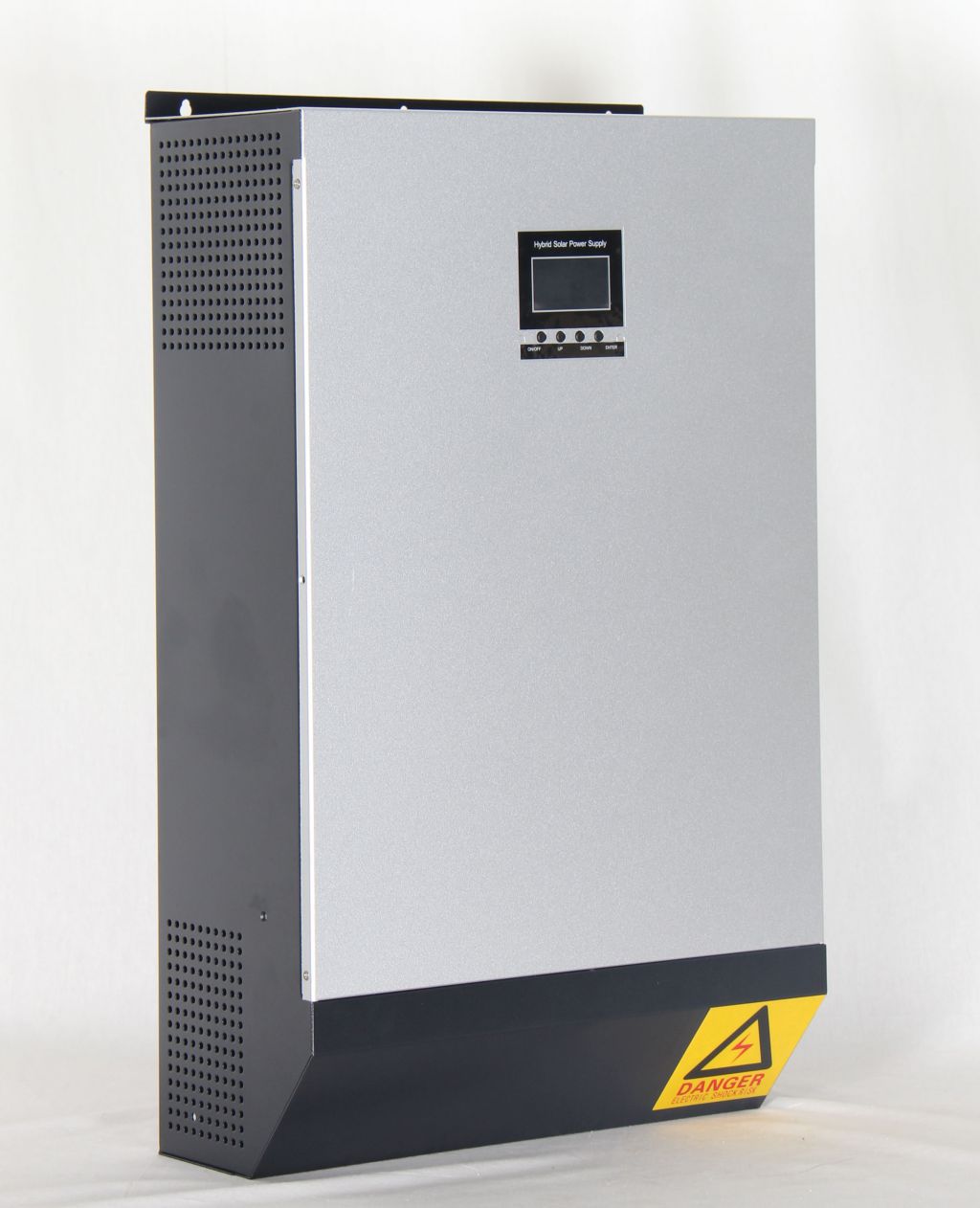

AC or Battery Priority

Our inverter is designed AC priority by default. This means, when AC input is present, the battery will be charged first.

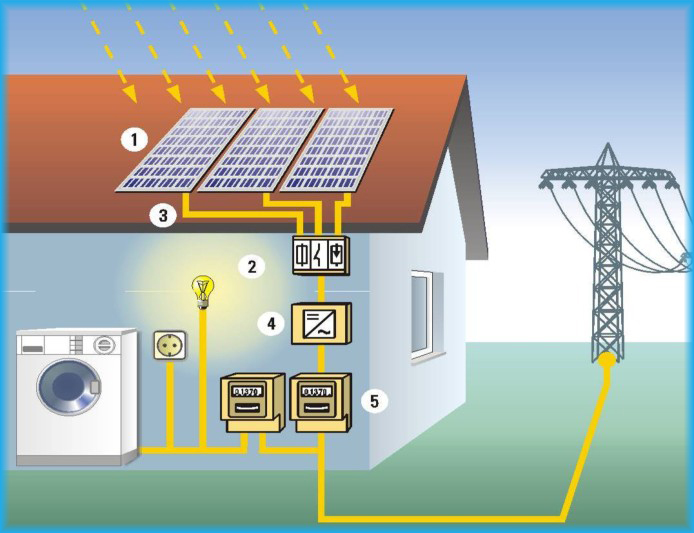

When you choose battery priority(Battery type selector on 7-9), then inverter will invert from battery despite the AC input. Only when the battery voltage reaches low voltage alarm point will be inverter transfer to AC input, charge battery and switch back to battery when the battery is fully charged. This function is mainly for wind/’solar systems using utility power as back up.

Key features:

To inverter:

►High overload ability up to 300% rated power (20 sec)
►Low voltage trip selectable (9.5V/10V or 10V/10.5V) extracting max power from various batteries with different protection
►Low quiescent current, power saver mode to reduce power consumption to 10W (3 sec sensing cycle)/3W (30s sensing cycle)
►DC13V battery recover point, dedicated for solar systems

To solar charger:

►MPPT function with high efficiency 97%
►Auto input DC voltage detect between 12V/24V
►Reverse current protection, battery temperature compensation

To battery charger:

►3 step intelligent battery charging (bulk, absorption, and float)
►8 pre set battery type (flooded lead acid, gel, or absorbed glass mat (AGM) batteries) selector
plus de-sulphation for totally flat batteries
►Powerful charge rate up to 90A, selectable from 0-100%
►PFC (Power Factor Correction) for charger, less power consumption than conventional units

To transfer:

►10ms typical transfer time between battery and AC, guarantees power continuity
►15s delay before transfer when AC resumes, extra protection for loads when used with generator
►Input AC voltage range selectable (184-253V or 154-253V) for different kinds of loads
►30/40A through current ability
►Allows start up and through power with depleted batteries

To remote control & others:

►Ability to switch the unit on/off, select/deselect power saver mode
►17 alarms/warnings, informative for easier operation and trouble-shooting
►Front panel LED indicators and adjustable switch selectors
►Battery/AC priority switch available for off grid solar/wind system
►Low battery, overload, and high battery, over temperature protection circuitry
►RS232/USB communication port available
►Generator compatible


Technical specifications:


General specifications:
Input wave form:	Sine wave(Utility or generator)
Nominal voltage:	120VAC			230VAC
Low voltage trip:	90V+/-4%			184V/154V+/4%-
Low voltage re engage:	100V+/-4%			196V/164+/-4%
High voltage trip:	140V+/-4%			253V+/-4%
High voltage re engage:	135V+/-4%			243V+/-4%
Max input AC voltage:	150VAC			270VAC
Nominal input frequency:	50Hz or 60Hz(Auto detect)
Low frequency trip:	47Hz for 50Hz, 57Hz for 60Hz
High frequency trip:	55Hz for 50Hz, 65Hz for 60Hz
Output wave form:	(Bypass mode) same as input
Overload protection:	Circuit breaker
Short circuit protection:	Circuit breaker
Transfer switch rating:	30 amp or 40 amp
Efficiency on line transfer mode:	95%+
Line transfer time:	10 ms typical
Bypass without battery connected:	Yes
Max bypass current:	30 amp or 40 amp
Bypass over load current:	35 amp or 45 amp: alarm
Inverter specification/output
Output wave form:	Pure sine wave
Output continuous power watts:	1000	2000	3000	4000	5000	6000
Output continuous power VA:	1000	2000	3000	4000	5000	6000
Power factor:	0.9-1.0
Nominal output voltage rms:	120/230VAC
Output voltage regulation:	+-/10% rms
Output frequency:	50Hz+/-0.3Hz or 60Hz+/-0.3Hz
Nominal efficiency:	>88%
Surge ratings:	3000	6000	9000	12000	15000	18000
Short circuit protection:	Yes, fault after 1 sec
THD	<3%
Inverter specification/input:
Nominal input voltage:	12.0V		24.0V		48.0V
Minimum start voltage:	10.0V		20.0V		40.0V
Low battery alarm:	10.5V/11.0V		21V/22.0V		42.0/44.0V
Low battery trip:	10.0V/10.5V		20.0V/21V		40.0V/42V
High voltage alarm:	16.0V		32.0V		64.0V
Low battery voltage recover	15.5V		31.0V		62.0V
Power saver:	Below 25 watts when enabled
Power saver:	Same switched on/off on remote
Charger mode specifications:
Input voltage range:	90-135VAC		194-243VAC/164-243VAC(W)
Output voltage:	Dependent on battery type
Max charger current:	35A/70A (Charger current controller)
Battery initial voltage for start up:	10-15.7V for 12V(*2 for 24V; *4 for 48V)
Over charger protection shutdown:	15.7V for 12V(*2 for 24V; *4 for 48V)
Solar charger mode specifications:
Rated voltage	12V/24V/48V
Rated charge current	40A/60A
Rated output current	15A
Self consumption	<10mA
Bulk charge	14.5V(default)*2 for DC24V, *4 for DC48V
Floating charge	13.5V(default)
Equalization charge	14.0V(default)
Over charge disconnection	14.8V
Over charge recovery	13.6V
Over discharge disconnection	10.8V(default)
Over discharge reconnection	12.3V
Temperature compensation	-13.2mV/’C
Ambient temperature	0-40’C(full load), 40-60’C(derating)
Mounting	Wall mount
Charger curves (4 stage constant current) battery types
4 steps digital controlled progressive charge
Battery type:	Fast V		Float V(*2 for 24V; *4 for 48V)
GEL U.S.A.	14.0		13.7
A.G.M. 1	14.1		13.4
A.G.M. 2	14.6		13.7
Sealed lead acid	14.4		13.6
GEL Euro	14.4		13.8
Open lead acid	14.8		13.3
Calcium	15.1		13.6
De-sulphation	15.5 for 4 hrs
Remote control/RS232/USB	Yes, optional
Size: in mm	1000/2000/3000 model: 580*315*300 mm3
	4000/5000/6000 model: 740*315*300 mm3
Gross weight:	1000	2000	3000	4000	5000	6000
	23Kg	25Kg	29Kg	40Kg	50Kg	50Kg
