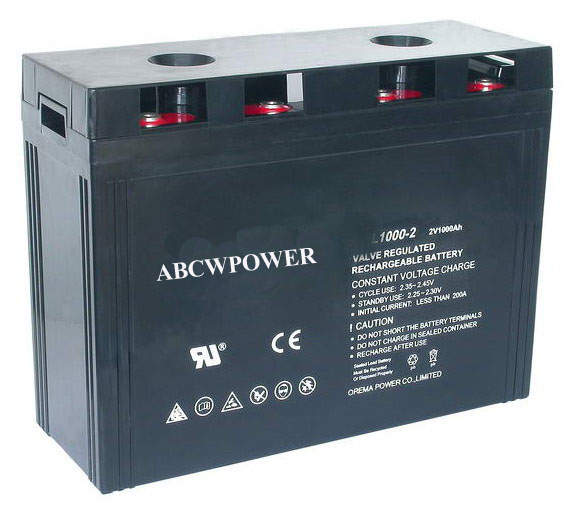

ABCWPOWER CG gel series battery is manufactured with special sheet separator and colloidal or foamed silica.
The batteries use silica gel to immobilize the electrolyte inside the battery.
The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures.
The deep discharge cycles is increased by 50% as compared with the AGM battery.
Product Standards
You can expect our batteries meet with the standards JIS, DIN, IEC60986-21/22 & BS6290-4. We have obtained ISO9001 & ISO14001 certification. We have obtained UL approval (MH25860) for all types of batteries. We have obtained CE approval for all types of batteries. All these render our batteries to be compatible with requirements of world-level equipments.
General Features
• Environmentally friendly
• Longer Service Life
• High Reliability and Quality
• High Power Density
• Excellent Recovery from Deep Discharge
• Living Up to Prevailing Standards
• Non-sensitive-to Occasional Deep Discharges
• International leading technology
• Germany PVC Separator and SiO2、100%
• Pinhole test technology
Applications
• Solar and wind systems
• Cable TV
• Telecommunications
• Wheelchair
• Marine Equipment
• Military Equipment
• Emergency lighting
• Power Plants
• Medical Devices
• Golf Cart
| Type | Nominal Voltage(V) | Nominal Capacity (10hr/Ah) | Length | Width | Height | Total Height | Terminal | Weight(Approx) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in | Kg | Pound | ||||
| CG2-200 | 2 | 200 | 173 | 6.81 | 111 | 4.37 | 330 | 12.99 | 364 | 14.33 | F10 | 15.2 | 33.5 |
| CG2-300 | 2 | 300 | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 364 | 14.33 | F10 | 20.0 | 44.1 |
| CG2-400 | 2 | 400 | 210 | 8.27 | 176 | 6.93 | 330 | 12.99 | 367 | 14.45 | F10 | 27.0 | 59.5 |
| CG2-500 | 2 | 500 | 242 | 9.53 | 173 | 6.81 | 330 | 12.99 | 365 | 14.37 | F10 | 31.0 | 68.3 |
| CG2-600 | 2 | 600 | 302 | 11.89 | 175 | 6.89 | 330 | 12.99 | 367 | 14.45 | F10 | 40.0 | 88.2 |
| CG2-800 | 2 | 800 | 410 | 16.14 | 175 | 6.89 | 330 | 12.99 | 367 | 14.45 | F10 | 53.5 | 117.9 |
| CG2-1000 | 2 | 1000 | 475 | 18.70 | 175 | 6.89 | 330 | 12.99 | 367 | 14.45 | F10 | 63.5 | 140.0 |
| CG2-1500 | 2 | 1500 | 400 | 15.75 | 350 | 13.78 | 345 | 13.58 | 382 | 15.04 | F10 | 105 | 231.5 |
| CG2-2000 | 2 | 2000 | 490 | 19.29 | 350 | 13.78 | 345 | 13.58 | 382 | 15.04 | F10 | 120 | 264.6 |
| CG2-3000 | 2 | 3000 | 710 | 27.95 | 350 | 13.78 | 345 | 13.58 | 382 | 15.04 | F10 | 190 | 418.9 |
| CG12-55X | 12 | 55 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | F11 | 21 | 46.3 |
| CG12-72TX | 12 | 72 | 306 | 12.05 | 169 | 6.65 | 210 | 8.27 | 215 | 8.46 | F21 | 27 | 59.5 |
| CG12-80X | 12 | 80 | 330 | 12.99 | 171 | 6.73 | 215 | 8.46 | 220 | 8.66 | F11 | 29.5 | 65.0 |
| CG12-200X | 12 | 200 | 520 | 20.47 | 269 | 10.59 | 203 | 7.99 | 208 | 8.19 | F12 | 70 | 154.3 |
| CGT12-100X | 12 | 100 | 436 | 17.17 | 108 | 4.25 | 317 | 12.48 | 317 | 12.48 | F15 | 39.4 | 86.9 |
| CGT12-120X | 12 | 120 | 552 | 21.73 | 110 | 4.33 | 288 | 11.34 | 295 | 11.61 | F12 | 44.5 | 98.1 |
| CGT12-125X | 12 | 125 | 548 | 21.57 | 105 | 4.13 | 316 | 12.44 | 316 | 12.44 | F15 | 46.0 | 101.4 |
| CGT12-160X | 12 | 160 | 546 | 21.50 | 125 | 4.92 | 317 | 12.48 | 323 | 12.72 | F15 | 53.5 | 117.9 |
